APOLLO & ASTOR Laser Systems for Patient Alignment

In radiation therapy precision and speed are foremost requirements for high patient throughput. Accurate planning and careful positioning are the keys of all treatment procedures. LAP positioning lasers display very fine, long lines on the isocenter of the machines, so the patient can be quickly and accurately placed
on the couch in a reproducible position. LAP lasers set the standards in line quality, stability, reliability and ease of use.

Design and Optics

  • Unique optics project crosshair lines equal in width and brightness
  • The advanced adjustment system is lead screw driven and externally accessible, to make fine adjustments fast and simple.

APOLLO Red & Green

  • Remote controlled adjustments
  • Moves cross left/right
  • Moves cross up/down
  • Rotates cross
  • Tilts vertical plane
  • Tilts horizontal plane
  • Turns to focus lines
  • Cross angle, factory set to 90°

ASTOR Red

Manual adjustments

  1. Rotates vertical line
  2. Rotates horizontal line
  3. Moves vertical line left/right
  4. Moves horizontal line up/down
  5. Tilts vertical plane
  6. Tilts horizontal plane
  7. Turns to focus vertical line
  8. Turns to focus horizontal line

ASTOR Green

Manual adjustments

  1. Moves cross left/right
  2. Moves cross up/down
  3. Rotates cross
  4. Tilts horizontal plane
  5. Tilts vertical plane
  6. Turns to focus lines
    Cross angle, factory set to 90°

Special Products

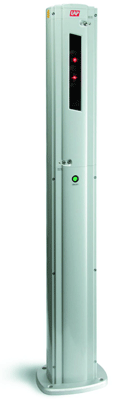

Floor Mounted Laser Gemini: Dual Cross for extended SSD treatments and easier patient set up
False Ceiling Mounting Bracket



Backpointers red and green

Technical Specifications

  APOLLO RED APOLLO GREEN ASTOR RED ASTOR GREEN
Crosshair Laser LAP AP-KR LAP AP-KG LAP AS-KR LAP AS-KG
Line Laser LAP AP-LR LAP AP-LG LAP AS-LR LAP AS-LG
Line width up to 4 m distance < 1 mm < 1 mm < 1 mm < 1 mm
Line length at 3m/10 ft distance 4 m/12 ft 3 m/10 ft 5 m/15 ft 3 m/10 ft
Laser type Laser diode Diode Pumped
Solid State
Laser diode Diode Pumped
Solid State
Wavelength 635 nm 532 nm 635 nm 532 nm
Color red green red green
Output < 1 mW < 1 mW < 1 mW < 1 mW
Laser class 2 2 2 2
Power requirements 110/230 V AC
5 V DC
110/230 V AC
5 V DC
110/230 V AC
5 V DC
110/230 V AC
5 V DC
Main voltage 5 V DC 5 V DC 5 V DC 5 V DC
Power consumption 1 W 10 W 1 W 10 W
Ambient temperature 0-40° 15-30° 0-40° 15-30°
Dimensions (HxWxD) 200x110x100 mm 200x110x100 mm 160x86x75 mm 200x110x100 mm
Weight 2.4 kg/5 lbs 2.4 kg/5 lbs 1.5 kg/3.3 lbs 2.4 kg/3.3 lbs
Isocenter adjustment
accuracy
± 0,5 mm ± 0,5 mm ± 0,5 mm ± 0,5 mm
